Four-wheel vehicles Smart Wheel
Road-tire forces measurement
automotive
wireless
races
lightness
easy
- Good accuracy and dynamic behavior
- Ruggedized and proven
- Low cost
The measurement of contact forces between road and tires is very important while designing road vehicle control systems, looking for performance or safety improvement.

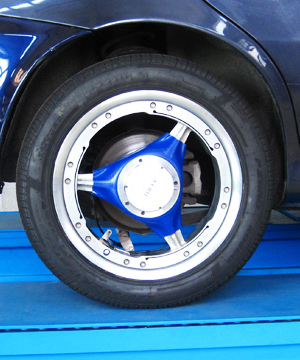

The Smart Wheel concept is based on a patented three-spoke structure connected to the wheel rim; the spokes are instrumented by means of strain gauges allowing the smart wheel to measure three forces and three moments acting at the interface tire-road.
SmartMechanical_ and Politecnico di Milano, have realized several versions of Smart Wheels dedicated to four wheel vehicles, gathering a wide experience and reaching a high level of reliability and effectiveness.
The applications span from tire characterization to active vehicle control with special regard to ESP and ABS applications.
RIM SIZE
15”-19”
TOTAL MASS
10 kg
MAX FORCE X,Y,Z
15 kN
UNCERTAINTY 95%
0.3% F.S.
RESOLUTION
1 N
MAXIMUM TORQUE X,Y,Z
3.5 kNm
UNCERTAINTY 95%
0.2% F.S.
RESOLUTION
0.2 Nm
1ST NAT. FREQUENCY
400 Hz
CROSS-TALK 95%
< ±1% F.S.
MAX OVERLOAD
100% F.S.
DATA ACQUISITION
6+1 wireless channels
DATA ACQUISITION FREQUENCY
up to 400 Hz
POWER SUPPLY
Battery
